Art Deco Majesty

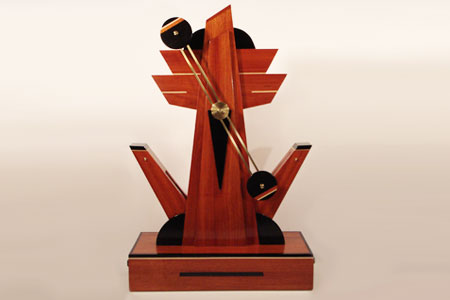

When the propeller is spun, a hidden arm rises out of the machine, collects one of the balls from the top, and drops it into the base before rising again.
How It WorksHow It's MadeHow It Went

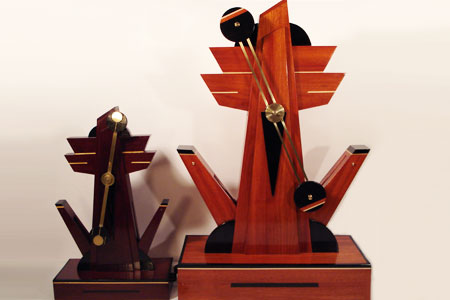

Though it incorporates a number of refinements, this intriguing, authoritative machine works in much the same manner as its smaller sister, Art Deco Elegance.

However, at its simplest, the machine basically works like a yo-yo, in the sense that it uses rotational inertia. Just as a string is tied between a yo-yo's axle and one's finger, a string is attached between the machine's central axle and its hidden scooper arm.

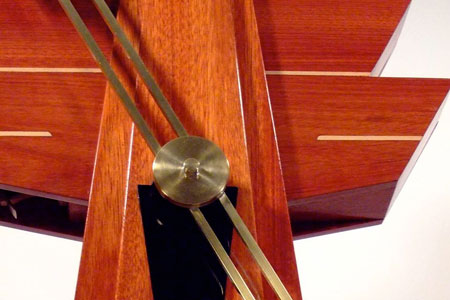

When the brass "propeller" is spun, the string winds around the machine's axle, which causes the arm to rise until it hits a trigger mechanism that releases one of 20 hidden balls. (It's the weight of each falling ball that keeps powering the machine beyond the initial spin.)

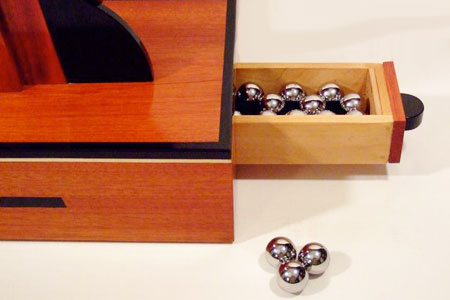

As the arm lowers the ball into the base's removable drawer, it causes the "propeller" to spin in the opposite direction before the arm rises again and the entire process repeats itself. Since the machine has 20 balls (which are manually fed into the machine through a hole in the back), it will complete 20 cycles until it comes to a stop.
